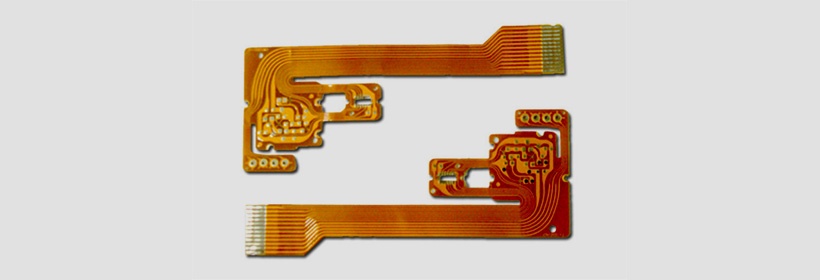

2 Layer Flexible PCB Manufacturer

A 2 Layer Flexible PCB or Double-sided FPCB is a patterned arrangement of 2 copper printed circuitry that connected with plated-through holes. To be easy, it’s made of a double-sided flexible copper clad laminate (FCCL) and with or without coverlay. Polyimide (PI) dielectric material is in-between the 2-layer copper. If with adhesive between copper and the dielectric PI, it calls adhesive PI substrate. Otherwise, it calls adhesiveless PI substrate. Generally, the 2layer flexible PCB with adhesiveless PI substrate is cheaper than that with adhesive PI substrate.
PCB Specifications
• Material: Adhesiveless PI, 94V-0
• Layer Count: 2
• Finished Thickness: 0.17mm+/-0.03mm
• PCB Size: 876.3mm x 16.7mm
• Copper Weight: 1/1oz
• Coverlay: x2, yellow
• Surface Finish: ENIG (Au: 2-3µ’’, Ni: 120-240µ’’)
As a 2 Layer Flexible PCB Manufacturer, we fabricate and provide single-sided to 8-layer FPCBs with half ounce to 3 ounces copper in low-volume and high-volume quantities with advanced Fleixible PCB Capabilities. For 2 Layer Flexible PCB prototype, we support quick turnaround delivery time as fast as 24 hours. Releasing PO today and we ship the flexible PCB prototypes tomorrow through the quickest express to the country of the customers.
